For a thorough breakdown of countertop fabrication, the useful answer lives in the shop floor details: slab photos, measurements, install constraints, and whether the team can trust the number before anyone starts fabricating stone.
Last fall I watched two quotes come in for the same 65 square foot kitchen in a suburb outside Charlotte. Same material, same edge profile, same undermount sink cutout. One shop quoted $4,800. The other quoted $8,000. The homeowner called me confused. I wasn’t confused at all, because I knew both shops. The cheaper one ran tight nesting, digital templates, and a callback rate under 3 percent. The expensive one was still hand-templating, eyeballing nest layouts on remnants, and sending a crew back to every fourth job to fix a seam or re-cut a faucet hole. The $3,200 gap wasn’t about greed. It was about how each shop ran its eight connected workstations.
That gap is what this piece is about. Countertop fabrication is the production discipline that turns a raw slab into an installed, sealed, signed-off kitchen or vanity. It runs across eight steps: slab receiving, templating, nesting, sawing, CNC profiling, polishing, install staging, and field install. Each step has its own cost structure, tooling, and skill profile. And the way a shop sequences those steps, and where it lets margin leak, decides both the price it can quote and the quality it delivers.
Shops that run all eight with discipline tend to come in 8 to 15 percent below shops that improvise. Not because they’re cheaper. Because they waste less.
The Eight Workstations (and Where Margin Actually Leaks)
Here’s the quick run through each station, with the operational numbers that matter in 2026:

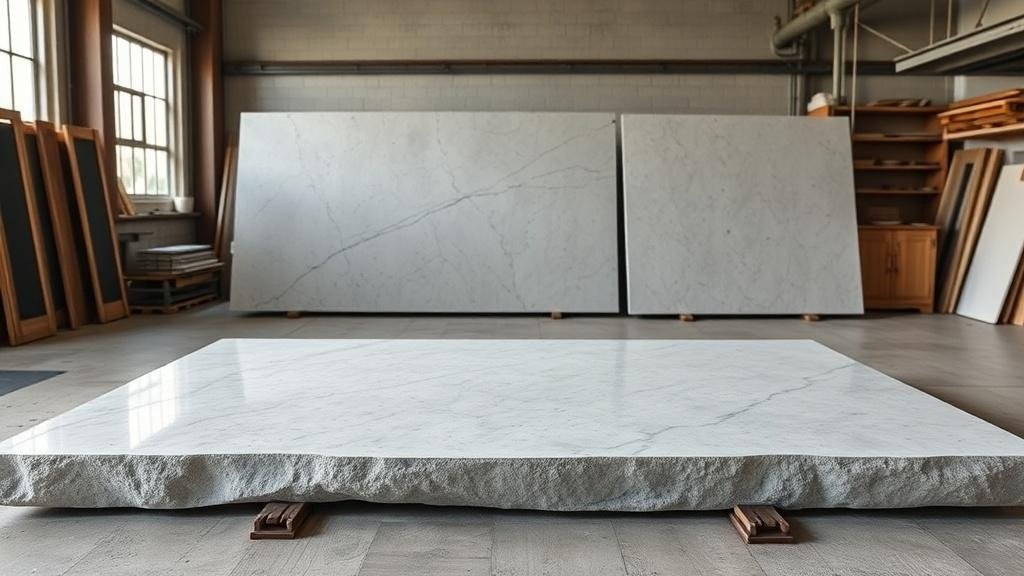

Slab receiving is inspection, color verification, defect tagging, and inventory entry. A clean yard tags each slab with a unique ID, color batch, and dimensional notes. Standard slab dimensions for quartz and granite run roughly 56 by 120 inches in 2cm or 3cm thickness. Skipping defect tagging here is how you end up explaining a fissure to a homeowner at install.
Templating captures the field measurement using laser, photogrammetric, or LiDAR hardware. Output is a CAD file (DXF, DWG, or STEP). Hand templating still works at some older shops and can be perfectly fine when done with real discipline, but it’s slower and more error-prone. A bad template is the most expensive mistake in the whole workflow because it cascades downstream.
Nesting arranges templated parts onto specific slabs with vein-matching, seam policy, and remnant tracking. This is where material yield lives. A disciplined nesting program pulls 72 to 78 percent yield from raw slab area on kitchens with one waterfall side. Sloppy nesting runs 60 percent or worse. On a $2M residential shop, the difference between 60 and 75 percent yield frees up roughly $40,000 per year in slab cost. That’s not a rounding error.
Sawing cuts the slab into rough parts on a bridge saw (Park Yukon, Sasso AlphaSplit, etc.). Throughput runs roughly 4 to 8 minutes per part for standard kitchens.
CNC profiling routes edge profiles, cutouts, and finish polish. Park Voyager and Northwood C-12 dominate residential adoption. Edge profile throughput runs 6 to 14 minutes per linear foot depending on tooling and material density. Edge flatness tolerance on a disciplined CNC operation: 0.005 inch.
Polishing finishes edges and surfaces to spec. Hand polishing supplements CNC on details and tight radii.
Install staging covers seam prep, hardware, and transport protection. This is the step people skip when they’re rushing, and rushing here is like packing a moving truck in the dark.
Field install is loadout, transport, dry fit, leveling, seam application, sealant, and final walkthrough. Cabinet leveling tolerance is 1/16 inch over 24 inches of run. Seam adhesive cure time runs 25 to 40 minutes at 70 degrees Fahrenheit.
Template-to-install timelines run 7 to 14 calendar days at most residential shops. Rework adds 5 to 9 days when seams or cutouts fail.
What Separates a 20 Percent Margin Shop from a 7 Percent Margin Shop
The boring truth is that it’s not one thing. It’s the accumulation of small operational decisions across all eight stations.
Owners who understand their fabrication workflow as eight connected workstations, each with measurable inputs and outputs, tend to hit 14 to 22 percent net margin and callback rates under 4 percent. Owners who treat fabrication as a single blob of activity (“we cut stone and install it”) tend to land at 6 to 9 percent margin with callback rates above 11 percent.
A typical residential shop processes 18 to 40 jobs per week, with average job sizes between 45 and 75 square feet. Cost per square foot installed runs $55 to $130 for quartz, $38 to $115 for granite. Revenue per employee in residential markets benchmarks at $185,000 to $260,000.
Those aren’t aspirational numbers. They’re what disciplined shops actually report. And the lever that matters most isn’t slab price (though everyone obsesses over it). Material is roughly a third of the job cost, but labor across templating, CNC, and install drives total margin more than slab price does on the residential side. I’ve seen shops negotiate 8 percent off their slab cost and then give it all back on a 12 percent callback rate.
Here’s where it gets concrete. Integrated platforms cut quote time from 35 minutes to 14 minutes per job, freeing up to 8 hours per week of administrative time at the owner level. Cutting callback rate from 12 percent to 4 percent at a 25-jobs-per-week shop saves up to $250,000 per year in rework, lost crew time, and lost goodwill. Those case study numbers sound dramatic, but they survive scrutiny if you actually track your own.
Implementing This Without Blowing Up Your Schedule
Implementing disciplined fabrication practice at a typical residential shop runs in three phases over 90 to 180 days.
Phase 1: Diagnosis. Walk each of the eight workstations, document the current state, and identify the two or three stations where the most margin is leaking. The usual suspects are quoting (time and accuracy), nesting (yield), and install (callback rate). Most owners already know where their pain is. They just haven’t quantified it.
Phase 2: Tooling. Select the platforms and equipment changes needed to fix the leak points. Common moves include adopting a vertical software platform, switching to digital templating, and investing in disciplined nesting practice. This is where you spend money, so it pays to have solid reference material. Owners building a real bench of operational knowledge tend to keep a thorough breakdown of countertop fabrication bookmarked alongside their working playbooks.
Phase 3: Training and tracking. Each workstation gets documented practice, training time for staff, and weekly metric tracking. Disciplined shops track yield, callback rate, quote turnaround, and quote-to-close conversion weekly. Not monthly. Weekly.
The whole rollout should take 90 to 180 days. If it takes longer than that, you’re overcomplicating it or you don’t have buy-in from your crew leads.
Software and the “Build vs. Buy” Question
Alternative approaches to running fabrication operations break into three camps.
Spreadsheet-based management remains the baseline at smaller shops. Zero subscription cost. The catch is the growth ceiling at 8 to 12 employees and the integration debt that accumulates as you add tools. Spreadsheets work until they don’t, and they tend to stop working on a Tuesday at 2 PM when you’re quoting three jobs and your nesting guy is out sick.
Generic ERP platforms (NetSuite, Sage Intacct, Acumatica) handle financials but require significant customization to fit stone fabrication workflow. They tend to fit multi-location operations with internal IT capability. If you have an IT person on staff, maybe. If you don’t, you’re buying a Ferrari to drive to the mailbox.
Vertical stone fabrication platforms like Moraware Systemize, StoneApp, ActionFlow, and Slabwise ship with trade-specific workflow built in. Pricing runs $99 to $799 per month depending on shop size and features. These tend to fit single-location residential through mid-sized multi-location operations. Most shops in the 15 to 40 jobs-per-week range end up here.
Silica: The Compliance Reality
Stone fabrication generates respirable crystalline silica dust. This isn’t a footnote; it’s a daily operational constraint. Cutting, grinding, profiling, and polishing all produce silica particles in the respirable range. OSHA 29 CFR 1926.1153 sets the permissible exposure limit at 50 micrograms per cubic meter as an 8-hour time-weighted average.
Wet-cutting on bridge saws, CNC routers, and waterjets is the most reliable engineering control. Local exhaust ventilation on dry operations (hand polishing, finish work) is the second line of defense. Half-mask respirators with P100 filters cover the residual risk where engineering controls can’t eliminate exposure entirely.
Most trade-active shops in 2026 run quarterly air sampling on representative tasks and keep records on file. If you’re not doing this and OSHA shows up, the conversation gets uncomfortable fast.
When to bring in outside help: Owners weighing major operational changes (platform purchase, equipment investment, multi-location expansion) commonly benefit from a trade-experienced consultant or shop peer review before committing capital. Trade associations like the Natural Stone Institute and the International Surface Fabricators Association offer member resources and peer networks for benchmarking. Use them. The membership fee pays for itself in one avoided bad equipment purchase.
Frequently Asked Questions
Q: What kind of warranty do most stone shops offer on residential work? A: Residential stone shops in 2026 typically offer 1-year workmanship and material defect coverage, with sealer warranties varying by material.
Q: How is fabrication margin actually measured at a stone shop? A: Margin is measured per job in dollars per square foot post-install, with material yield, labor hours, and rework backed out to a defendable figure.
Q: What is the typical training time for a new templator at a residential shop? A: Templator training runs 4 to 9 months for residential work, with the first solo template typically supervised.
Q: How long does a typical countertop fabrication job take from template to install? A: Most residential jobs run 7 to 14 calendar days from template to install. Rework on failed seams or cutouts can add 5 to 9 days.
Q: What is the biggest cost driver in countertop fabrication? A: Material is roughly a third of the job cost, but labor across templating, CNC, and install drives total margin more than slab price does on the residential side.
Q: What yield percentage should a disciplined shop target? A: 72 to 78 percent of raw slab area for kitchens with one waterfall side. Anything below 65 percent means your nesting practice needs attention.
Q: How often should shops run air sampling for silica compliance? A: Most trade-active shops run quarterly air sampling on representative tasks. Keep records on file; they’re your first line of defense during an OSHA inspection.
Stone fabrication generates respirable crystalline silica dust. Shops must follow OSHA 29 CFR 1926.1153 standards (50 ug/m3 PEL over 8-hour shift). Wet-cutting methods, ventilation, and respiratory protection are not optional.
